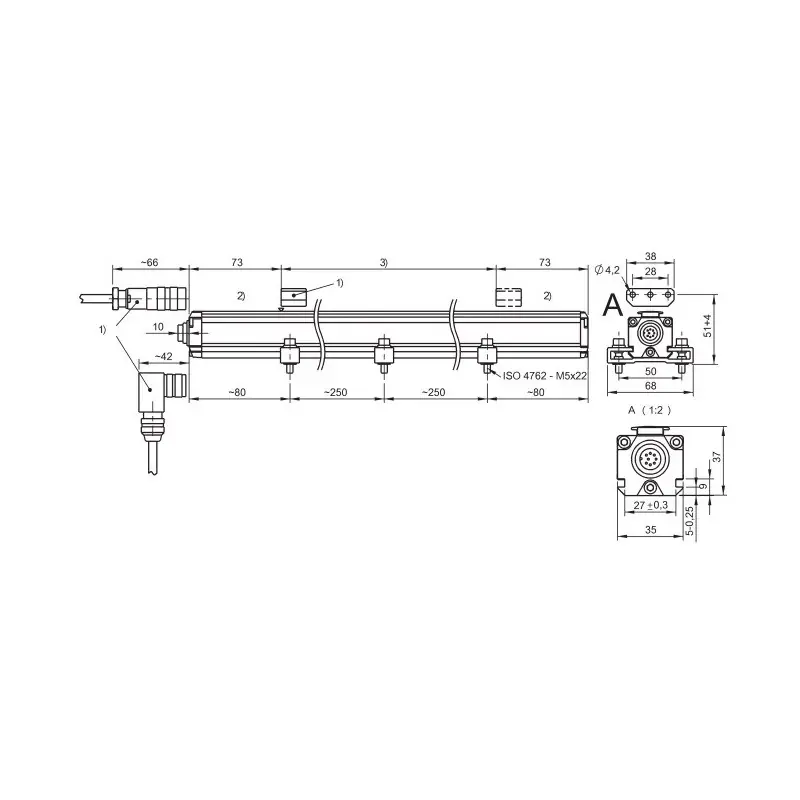

Snímač polohy BTL5-E17-M1300-P-S32, Balluff
Popis:
Connection type: Connector
Current draw (at 24 V DC): ? 150 mA
Error signal Ia falling: ? 3.2 mA
Error signal Ua falling: < 0 V
Error signal Ua rising: ? 10.2 V
For dynamic loop applications: No
Inrush current: ? 3 A / 0.5 ms
Interface: Analog interface, current
Interface group: Analog
Load resistance: RL max. ? 500 Ohm
Non-linearity max.: ±0.02 % FS
Number of magnets max.: 1 ST
Operating voltage UB max.: DC [V] 28.0 V
Operating voltage UB min.: DC [V] 20.0 V
Output signal: 204 mA
Overvoltage protected: Yes
Potential isolation: Yes
Ripple: 0.5 Vpp
Voltage resist (GNDhousing): 500 V DC
